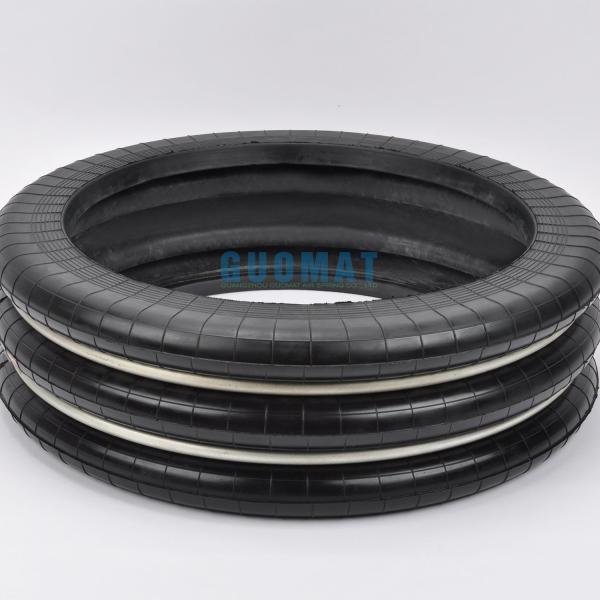

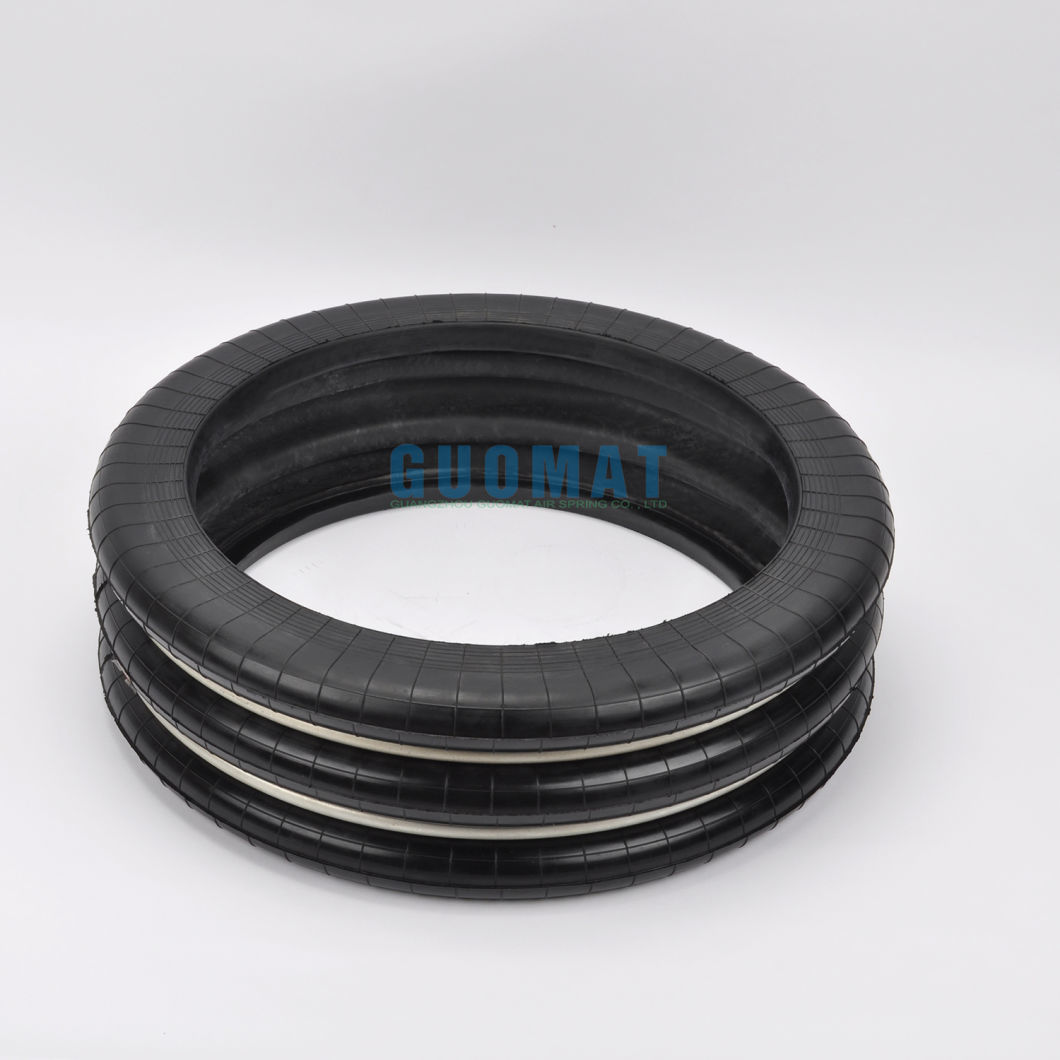

0.69Mpa Triple Convoluted Airbag Gas Rubber suspension spring Repair Kits
Product Description
| Product | Name | Punch Air Spring |
| Parts Number | F-500-3 |
| Warranty | 12 Months |
| Use | Industrial Machine |
| Bellow Type | Triple Convoluted |
| Sample | Acceptable |
| Color | Black |
| Payment | L/C,T/T,Western Union |
| Delivery | About 2-8 working days receiving your payment |
| Package | Strong Carton Box Or As Customers Need |
| Shipping | Ship by air ,by sea,by express(DHL,Fedex,UPS...) |

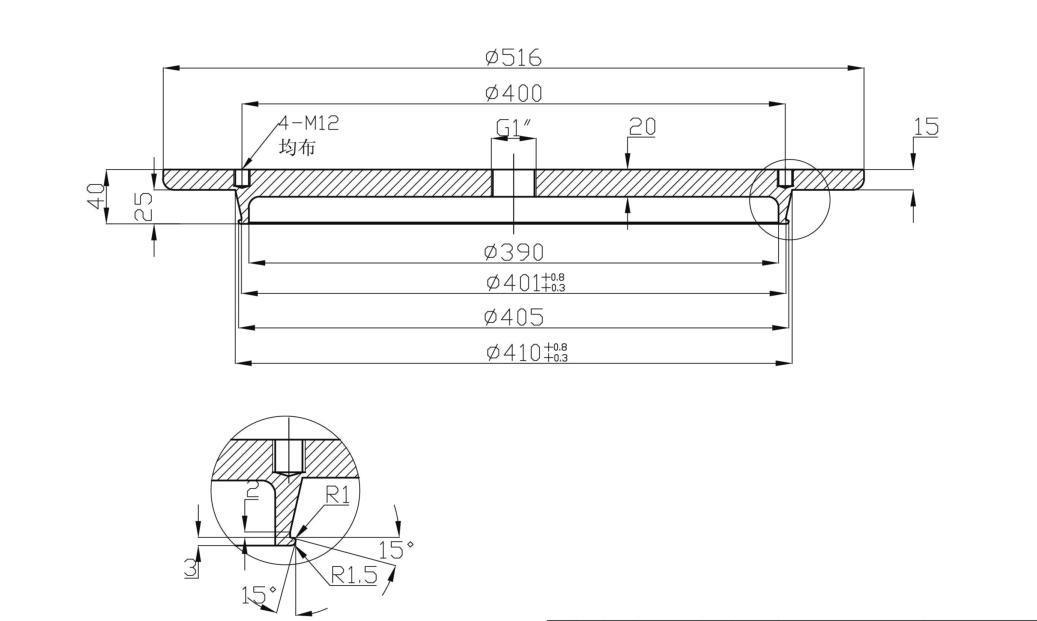

The Following Is The Cover Plate Detailed Data Drawing
Technical Data Purchase Order Data
Design Height:160mm
Max Height:270mm
Min Height:90mm
Common Maximum Travel:±68
Compression Max Outside Diameter:560mm
Effective Area:1965cm2
Volume:30.3L
Load:96.3KN
Dynamic Spring Constant:1255n/mm
Natural Vibration Frequency:1.8Hz
Maximum Internal Pressure:0.69Mpa
Internal Pressure Failure:3.9-4.9Mpa
About Us
Guangzhou Guomat Air Spring Co., Ltd.
- We focus on the production of air spring has been 15 years which is Chinese the largest manufacturer of air springs.
- We have Truck air spring,Bus air spring ,Car Suspension air spring , Industrial air spring and Air Suspension Compressor .
- The company has its own workshop,Provide all customers with high-quality purchasing experience,excellent quality and after-sale service
Company Advantages
- Excellent materials
- Effective shock
- In situ installation
-
Comfortable and stable
-
Long life
-
Slove the abnormal noise
Punch Air Spring
An air spring is a type of suspension system used in vehicles to provide a smooth and comfortable ride. It consists of a flexible bag filled with compressed air, which supports the weight of the vehicle and absorbs shocks and vibrations. The air spring is typically connected to the vehicle's suspension system and can be adjusted to vary the ride height and stiffness of the suspension.
| FAQ |
| 1. Are you a Manufacture factory? | Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years. |
| 2. What is your main products? | Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
| 3. Is the sample available? | Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 2-8 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order. |
| 5. Can i use my own logo and design on products? | YES,OEM is welcomed. |
| 6. I can not find out the items what i want from your website, can you offer the products i need? | YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item. |

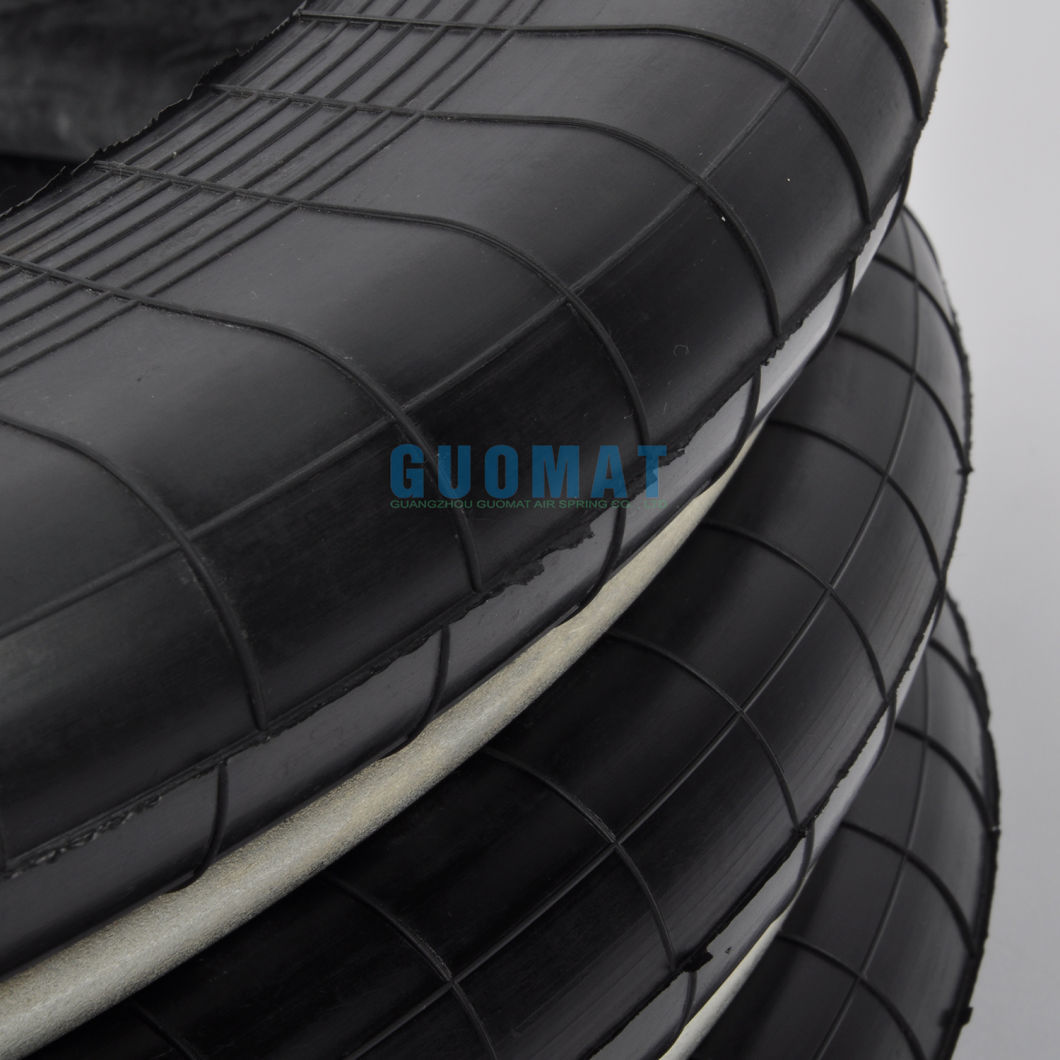

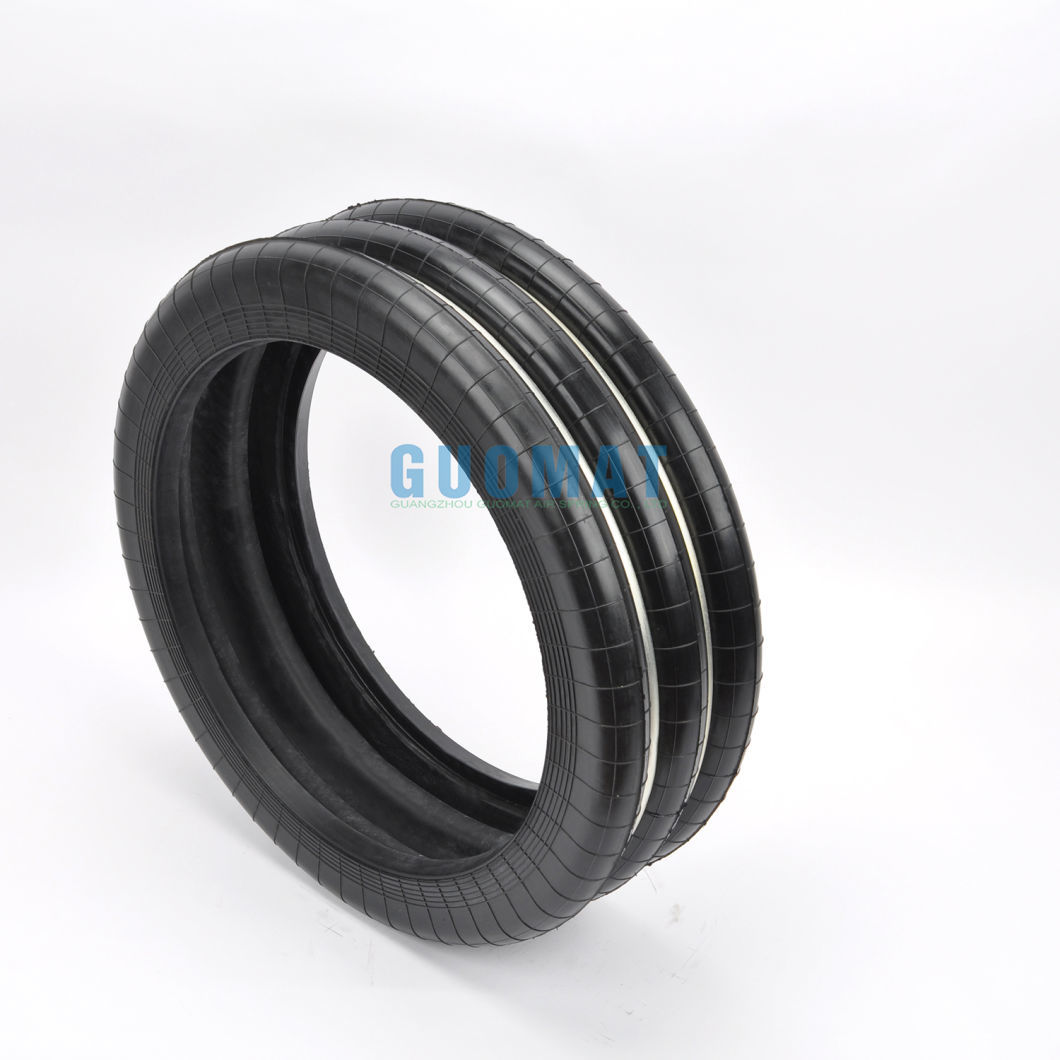

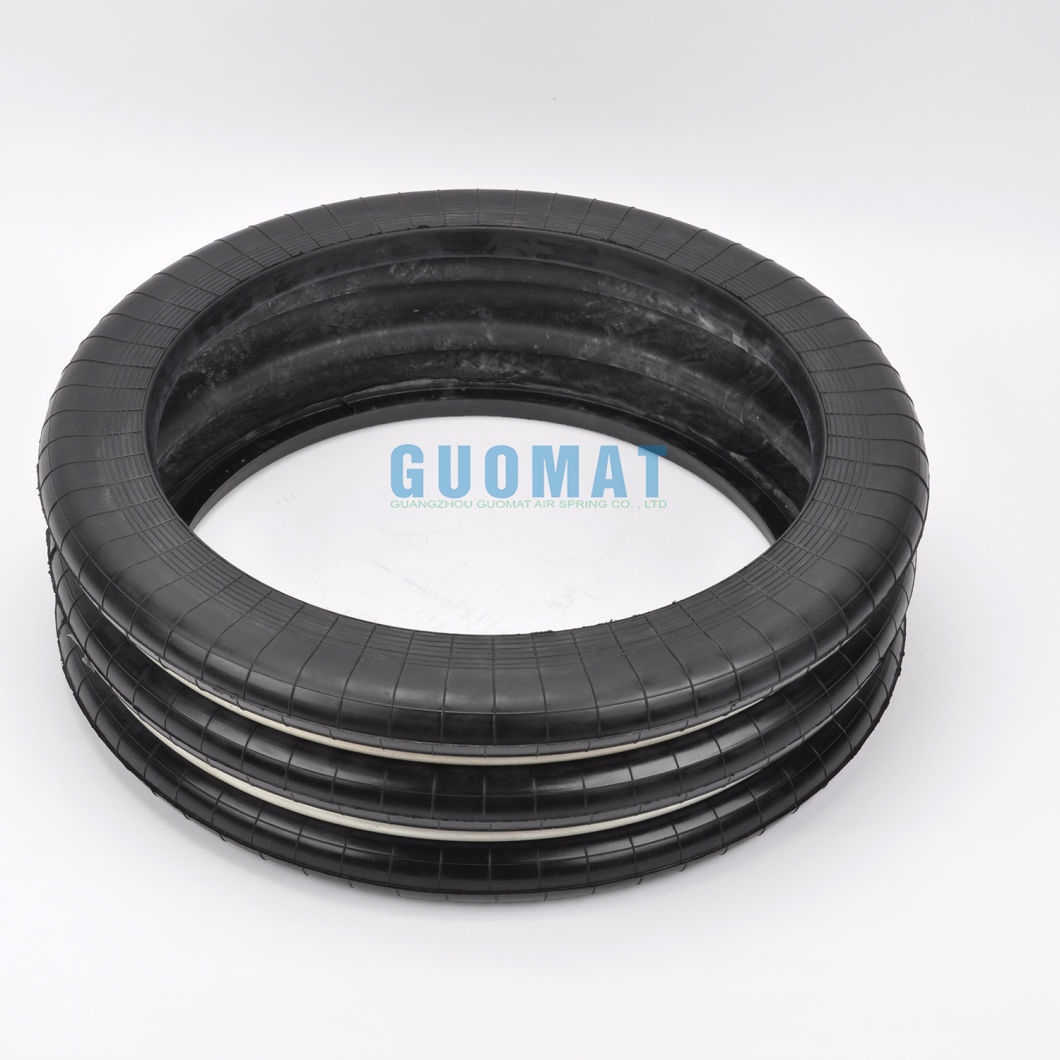

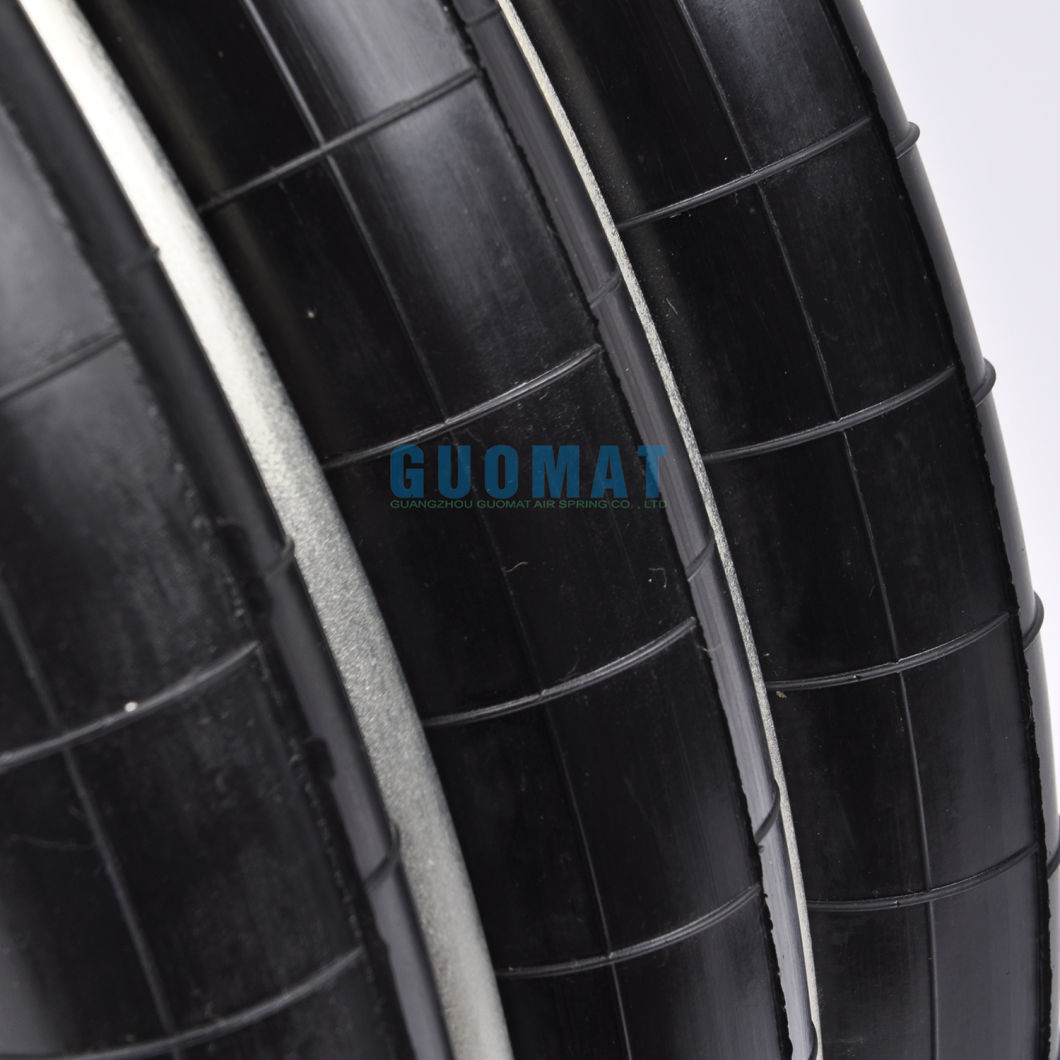

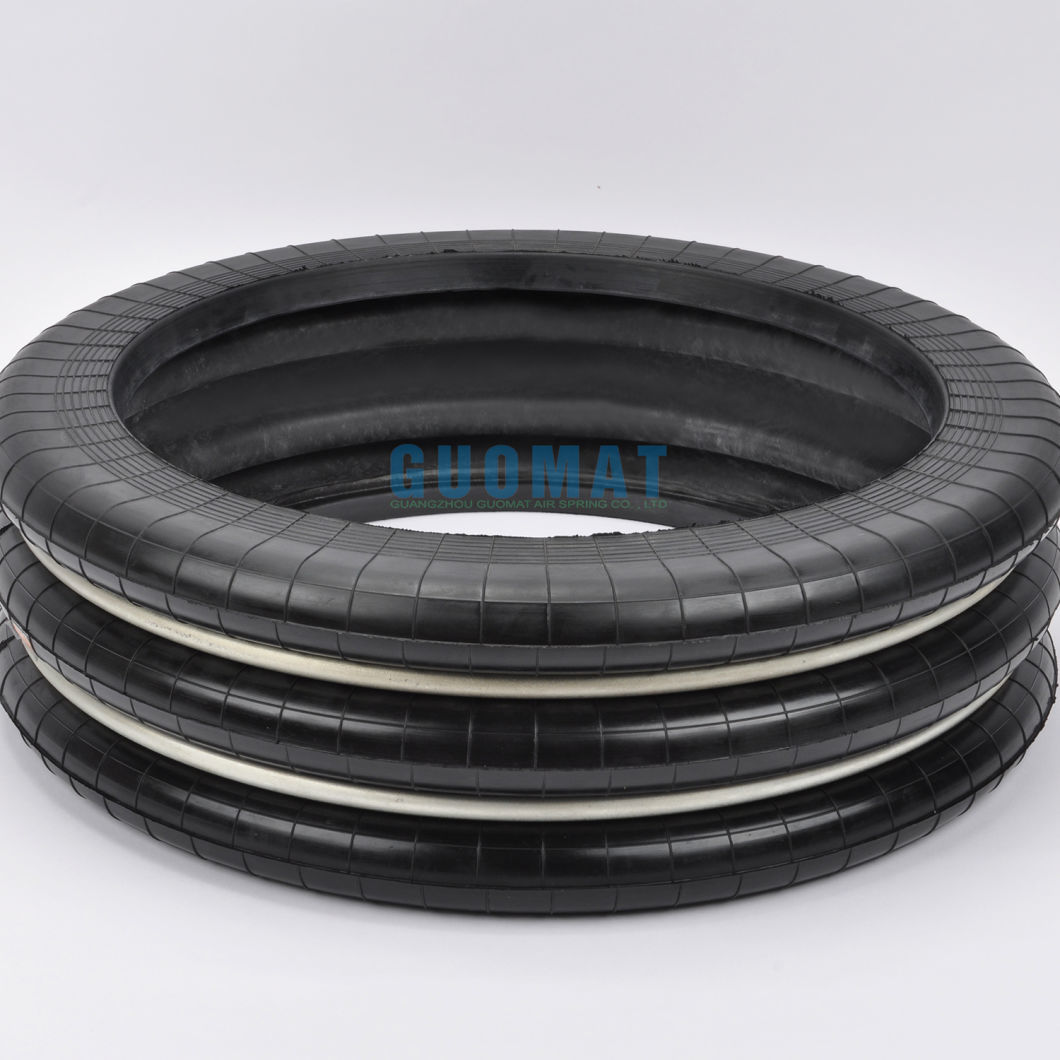

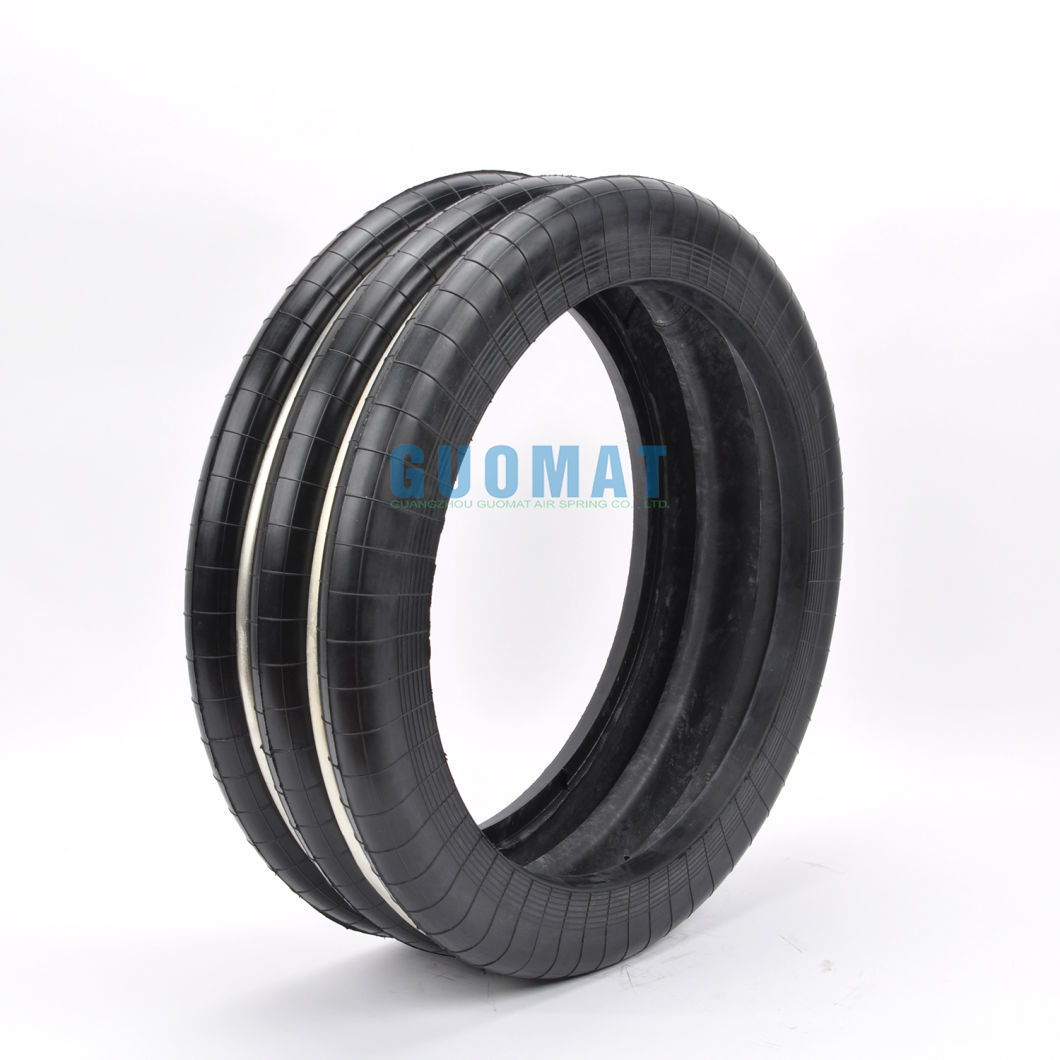

Detailed Photos
